- Size: 0.4
- Place of Origin: Shandong China
- Brand Name: SHENLI
- Model Number: 10-20T American Style Axle
- Weight: 398.000 kg
Company always insist on the "leading technology,quality service,continuous improvement,market development"policy,to " quality first,customer service "for the purpose,to slove all the questions and elimanate the worries of customers.

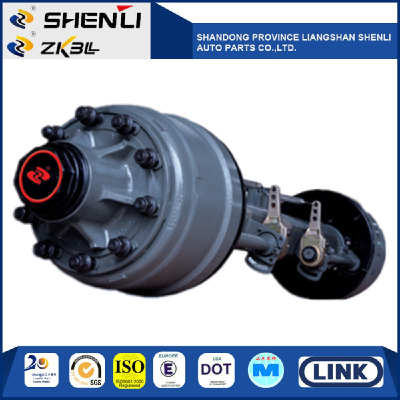

Product Description
Max Capacity: | 10T~20T,or other your requesment; |
Track: | 1820MM/1850MM, or your requesment; |
P.C.D: | Φ285.75/ Φ335; |
Hole Diameter: | 281mm |
Distance of Brake Chamber : | 354~510 |
Bearing: | 33213/33118 , 32314/32222,etc; |
Weigh: | 3 30~425KGS |
axle tube shape: | square or round |
ABS | ABS explosion protection system can be installed |
Our axle feature (American style axle and German style axle ):
1.introducing advanced equipment in manufacture line
2.The Brake Shoe is very popular for BPW DAF Benz truck
3.The Brake lining material( Non-asbestos ) is first production in China which promise to use 100000 Kilometers
4.The other parts:The size of Hub,Bearing,Resin....is also known and acceptable for market

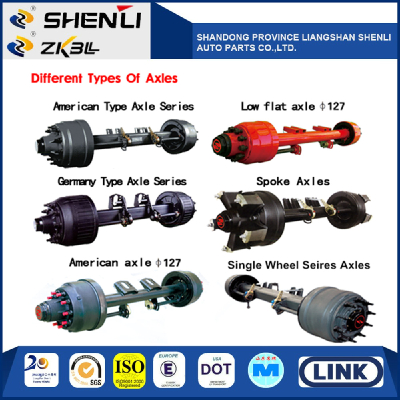

Axle factory can supply various axles for different trucks and trailers, All kinds of semi trailer axle are available, such as BPW type axle, American axle, inboard drum axle, outboard drum axle, Spoke axle (spider axle), concave axle, low loader axles. Etc.
1. American Type Axle: 8T, 11T, 12T, 13T, 14T, 15T, 16T, 20T and spoke wheel axle.
2. German Type Axle: 10T, 12T, 14T, 16T, 18T and spoke wheel axle.
3. Other special axles are available according to customers' design or requirement.
suspension factory can supply mechanical suspension, bogie suspension and air suspension with high quality and competitive price.
1. 1-axle, 2-axle, 3-axle and 4-axle mechanical suspension and air suspension.
2. 24 T, 28 T, 32T and 36T Bogie.
3. Our yearly turnout is over 250,000 unit’s different suspension basic on on-time delivery
We are a professional manufacturer of semi trailers and trailer parts, such as
1)fifth wheels (2" and 3.5"),
2)king pins (2" and 3.5",weldable and Bolton),
3)suspensions (bogie, spoke bogie, American suspension and German suspension etc),
4)axles (American and German, BPW type and FUWA type,spokeaxle, low loader, concave axle),
5)landing gears (inboard gear and outboard gear),
6)other components like twist container locks, screw locks, brake chamber, wheels, tires, and other functional components are also available.
Our Products Can Apply To :VOLVO, DAF, SAF, SCANIA, MERITOR, TATRA, KAMAZ, STEYER, HOWO, MAN, HINA. TRALOR, KINGLONG, ETC
If you have any require of brake lining, brake shoes, brake shoes assembly, axles,
please do not hesitate to contact us , we’ll supply the high quality and best price
to you.
Contact Us:
Skype:alisa@chinaaxle.cn
Tel: 86-18369786527
Email:alisa@chinaaxle.cn
www.chinaaxle.cn
- Size: 0.4
- Place of Origin: Shandong China
- Brand Name: SHENLI
- Model Number: 10-20T American Style Axle
- Weight: 398.000 kg
German Axle Assembly Paramerter:
Max Capacity | Track | Brake Size | Center Distance Of Spring Seat | Axle Tube | GM Center Distance of Brake Chamber | P.C.D | Hole Diameter | Total Length | Axle Weight | Bearing |
12 | 1840 | Ø420x180 | ≥940 | 150x150x12 | 440 | 335 | 281 | 2172 | 380 | Outer33213 Inner33118 |
13 | 1840 | Ø420x200 | ≥940 | 150x150x12 | 375 | 335 | 281 | 2172 | 381 | Outer33213 Inner33118 |
14 | 1850 | Ø420x200 | ≥950 | 150x150x14 | 380 | 335 | 281 | 2222 | 412 | Outer33215 Inner32219 |
16 | 1850 | Ø420x200 | ≥950 | 150x150x16 | 380 | 335 | 281 | 2293 | 439 | Outer32314 Inner32222 |
18 | 1850 | Ø420x200 | ≥950 | 150x150x18 | 380 | 335 | 281 | 2293 | 454 | Outer32314 Inner32222 |
